A Preallocated App means the Unreal Pixel Streaming application is already running 24/7 on streamer machines. When a user accesses the streaming URL, they are instantly connected to an existing running instance instead of waiting for the app to boot.

This approach significantly reduces load time and improves the overall user experience, especially for production environments.

How Preallocated App Works

The streaming application is launched and kept running continuously on streamer machines
No cold start occurs when a user connects
Users are connected within a few seconds
Ideal for demos, live events, and high-traffic applications

When to Use Preallocated App

Preallocated Apps are recommended when:

Instant connection is a priority
Application is accessed frequently
Live demos or public-facing experiences are required
User wait time must be minimized

Configuration Guide

Step 1. Update the `config_EL.json`

Update your config_EL.json file with the following parameters and save the file.

Configuration Template

JSON

{
  "preAllocateApp_configurationName": "your_config_name",
  "preAllocateApp_name": "your_app_name", // the app you want to pre allocate
  "preAllocateApp_owner": "your_username",
  "preAllocateApps": true,
  "apiKey": "your_api_key_here"
}

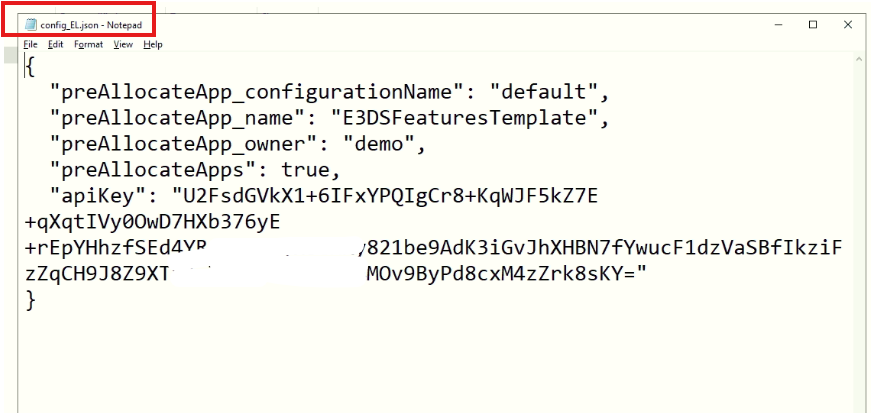

Example Configuration

JSON

{
  "preAllocateApp_configurationName": "default",
  "preAllocateApp_name": "E3DSFeaturesTemplate",
  "preAllocateApp_owner": "demo",
  "preAllocateApps": true,
  "apiKey": "U2FsdGVkX1...rk8sKY="
}

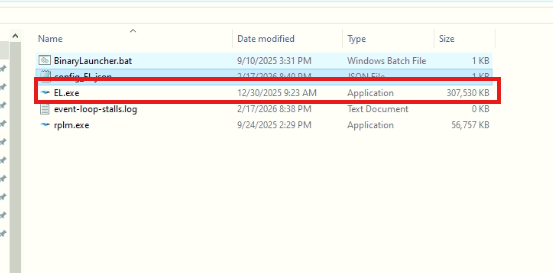

Step 2. Launch EL.exe file

After updating the configuration file, launch the EL.exe file.

Once launched:

The application will automatically start running on the streamer machine
When a user accesses the streaming URL, they will be connected instantly
The application loads significantly faster on the user’s end

Below is a video example demonstrating the behavior after launching EL.exe.

Important Notes

Ensure streamer machines are properly sized to handle continuous workloads
Monitor GPU and memory usage regularly
Disable preallocation when not required to reduce operational costs

Cons of Preallocated App

Higher infrastructure cost due to streamer machines running 24/7
Continuous GPU and CPU usage, even when no users are connected
Limited scalability without additional preallocated instances
Manual restarts required to apply new builds or configuration updates

Summary

The PreAllocateApp feature is designed for low-latency, high-availability Pixel Streaming experiences. While it increases infrastructure costs, it delivers instant access and production-grade reliability, making it ideal for critical deployments.

Troubleshooting

Issue	Possible Cause	Recommended Solution
App does not start after launching `EL.exe`	Incorrect values in `config_EL.json`	Verify app name, owner, and API key, then restart `EL.exe`
Users still experience long load time	App is not actually preallocated	Ensure `preAllocateApps` is set to `true` and `EL.exe` is running
High GPU / CPU usage	App runs continuously (24/7)	Monitor resource usage and scale streamer machine if needed
App changes not reflected	Preallocated app was not restarted	Restart `EL.exe` to apply new builds or configuration updates
