Select your Mouse Control Scheme
Select a Hovering or a Locked mouse Control.
If you are on trial, activate your Account today!
Find our Pricing Plans here.
Prerequisites
Make sure to :
Have access to the Control Panel.
Have an Eagle 3D’s User Account.
Instructions
You should have at least one App Uploaded.
Step 1. Sign In to your Control Panel
Login with your information.
Step 2. Select your App
.png?inst-v=e0349b9b-db0a-4e0d-84a3-bcfe4986c666)

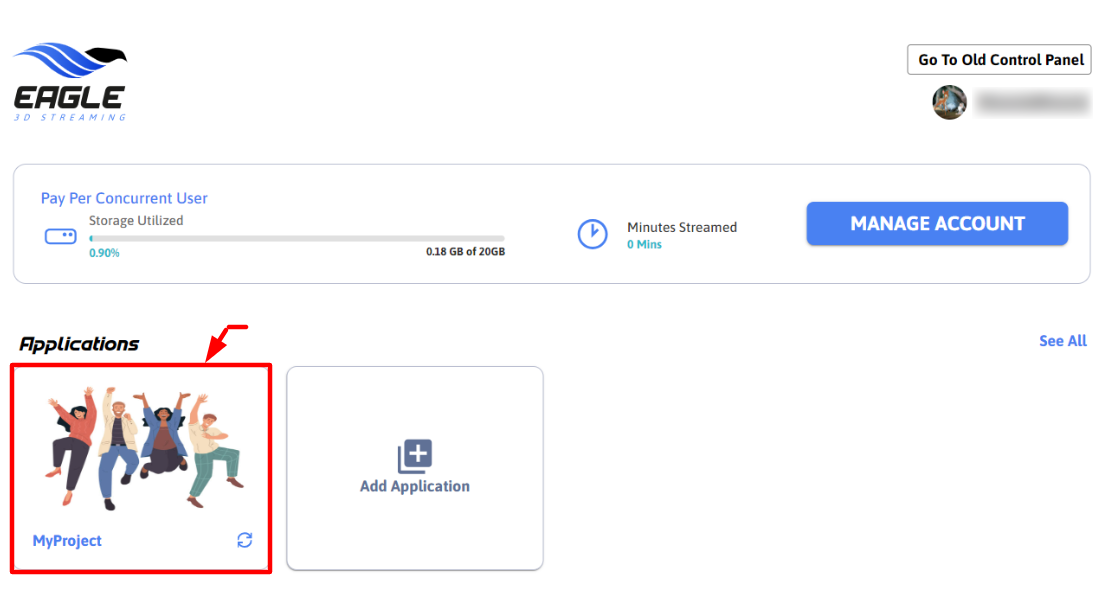

Image 1. Select your App
Step 3. Generate a Streaming Link
See : Generate a Streaming Link for your App.
Step 4. Create a Config
See : Create a Config for each Streaming Link.
Step 5. Edit the Config
See : Edit your Config.
Step 6. Select the Mouse scheme
Select either Locked or Hovering Mouse.
1. Select Hovering Mouse from the drop down menu
Handling mouse hover events is a common requirement for (UI) elements.
Detect when the mouse cursor is over a specific widget or object.
.png?inst-v=e0349b9b-db0a-4e0d-84a3-bcfe4986c666)

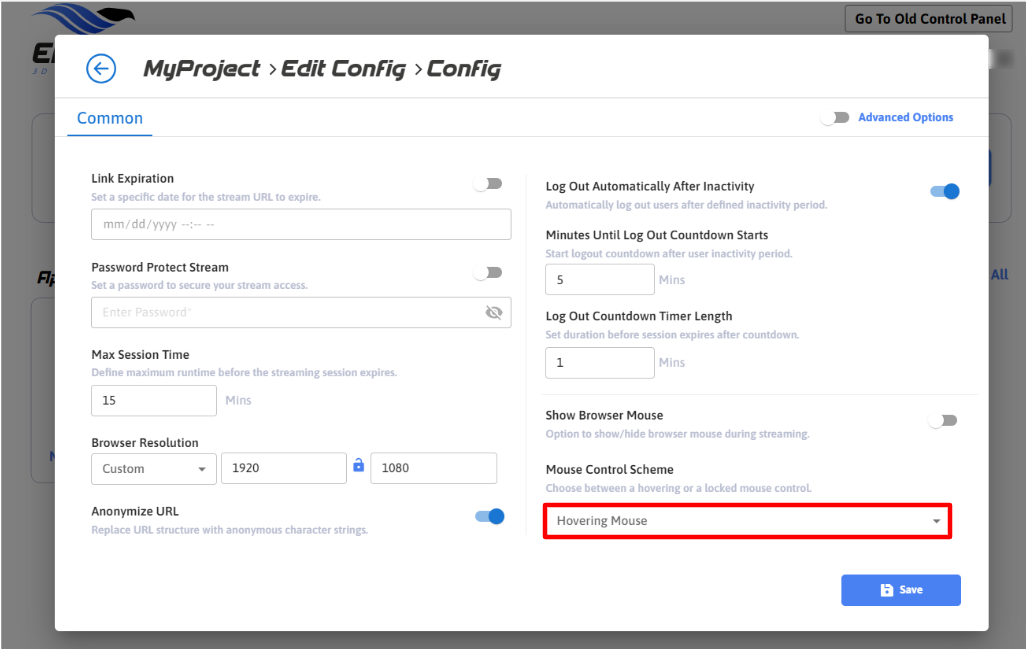

Image 2. Select Hovering Mouse
2. Select Locked Mouse from the drop down menu
Often used in first-person or third-person games.
Prevents the mouse cursor from leaving the game window and allows the game to capture mouse movement directly for controlling the camera or player character.
.png?inst-v=e0349b9b-db0a-4e0d-84a3-bcfe4986c666)

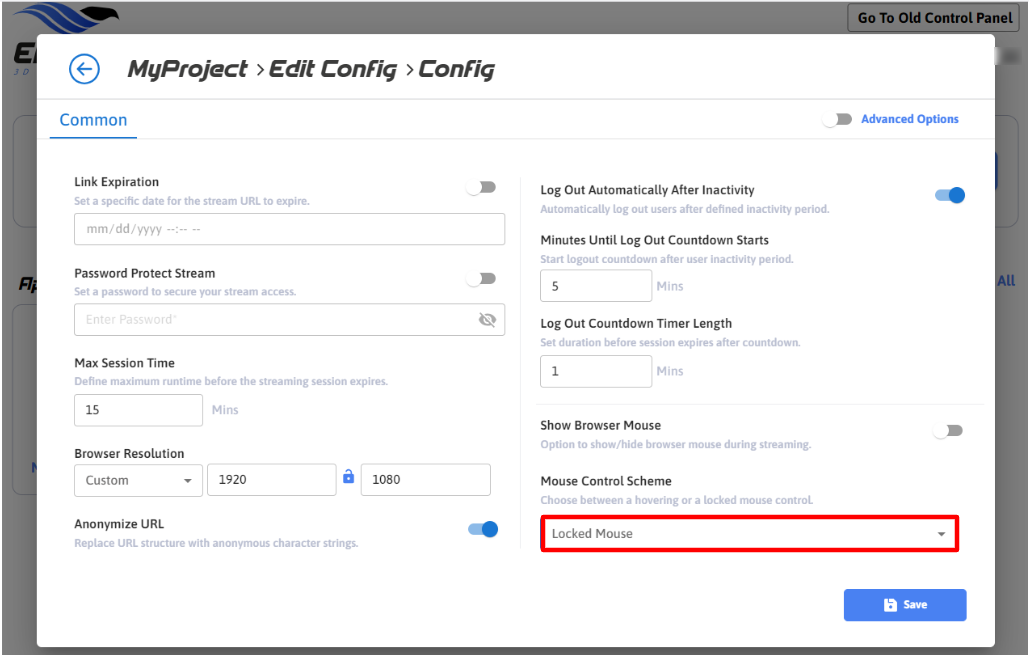

Image 3. Select Locked Mouse
3. Click Save
.png?inst-v=e0349b9b-db0a-4e0d-84a3-bcfe4986c666)

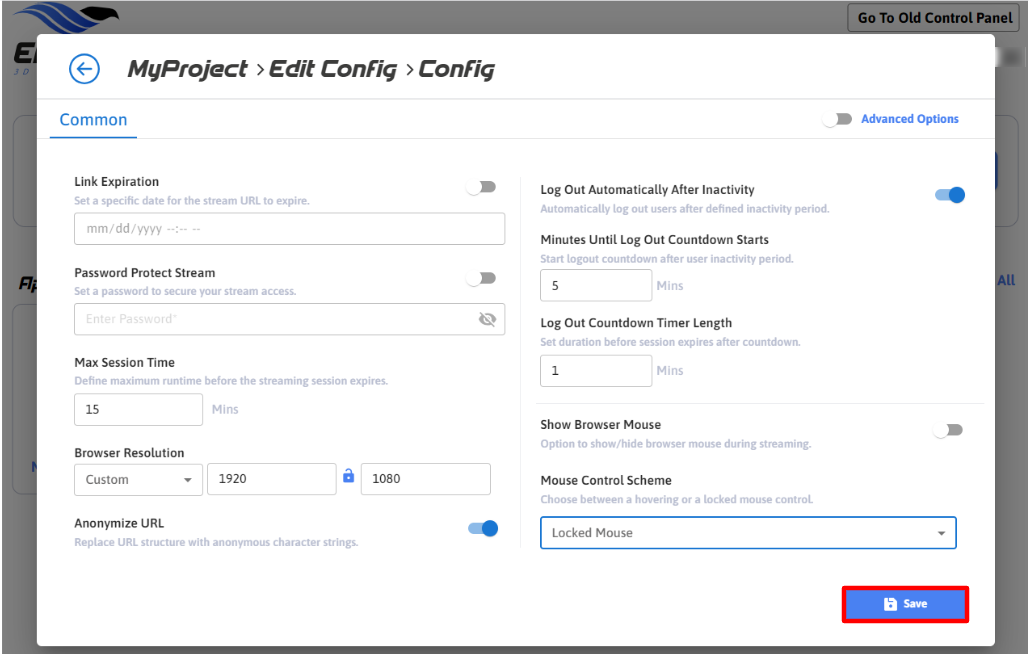

Image 4. Click Save
Warning ❌ 🚫
Issue:
Mouse stopping at the edges of the viewport (ie. hitting both sides of the screen and stopping camera rotation instead of rotating 360 degrees and completing a full circle rotation)
Fix:
change the Mouse Control Scheme from ‘'Hovering mouse’' to ‘'Locked Mouse’' to get the full camera rotation while streaming your application
Now you know which Mouse Scheme to select for your App !
