Loading screen

What a viewer looks at while your app starts on Eagle 3D Streaming. Six elements can be replaced with your own artwork, or the whole screen can play a video.

Worth the effort: the loading screen is the first thing anyone sees, it is on screen for the longest single wait in the session, and by default it carries Eagle 3D Streaming's branding rather than yours.

Where these settings live

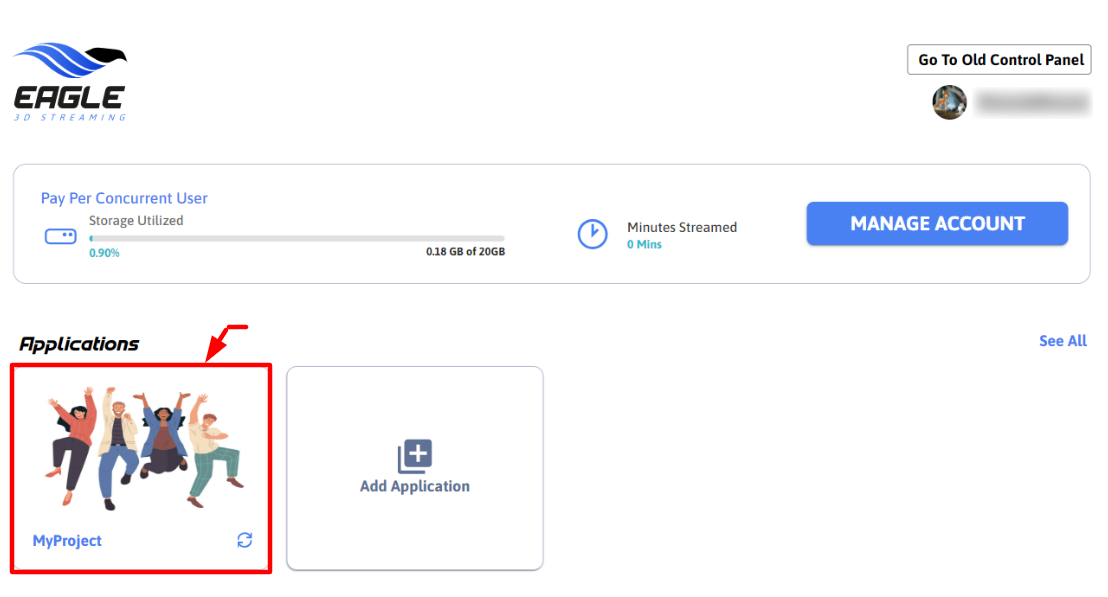

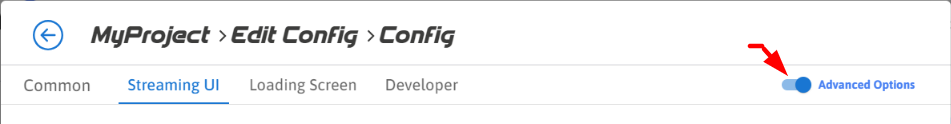

Your app › stream link's configuration › pencil icon › Advanced Options › Customization tab. Advanced Options has to be switched on first — none of this is visible until it is.

What you can replace, and with what

ElementFormatRecommended sizeWhere it appears
Title bar iconPNG, square48 × 48 (32 × 32 at least)The icon in the browser tab.
Queue backgroundPNG or JPG1920 × 1080The whole screen, while the viewer waits for a free machine.
Loading backgroundPNG or JPG1920 × 1080The whole screen while the app starts, and behind Click to start.
LogoPNG, transparent800 × 400 or smallerTop of the loading screen.
Play buttonPNG, transparent, square400 × 400Centre of the screen; the viewer presses it to start.
Loading imageGIF130 × 130 or smaller, squareThe small animation in the middle of the loading screen.

Picture by picture: what viewers see, and what goes wrong

A computer screen is wide; a phone held upright is tall. The same picture is shown on both, so each element below says what happens on each, and how to fix the usual problems.

Title bar icon

The small icon in the browser tab, next to the page title. The browser shrinks it to 16–32 pixels.

You seeWhyFix
A blurred or unreadable iconDetailed artwork or small text, shrunk to 16 pixelsUse a simple mark: one shape, strong colours, no text
The icon looks squashedThe picture is not squareMake it square (48 × 48)
The old icon still showsBrowsers keep tab icons for a whileOpen the link in a private window to check

Queue background

Fills the whole screen while the viewer waits for a free machine. It is drawn to cover the screen: it is never shown with bars, so on a screen of a different shape its edges are cut off.

You seeWhyFix
On a phone, the left and right of the picture are missingA wide picture covering a tall screen loses its sidesKeep anything important (logo, text) in the middle third of the picture
The picture looks blurredIt was uploaded small and is stretched to the full screenUpload it at 1920 × 1080

Loading background

Fills the screen while the app starts, and stays behind the Click to start button. Your picture is shown whole: where its shape differs from the screen's, black fills the rest.

ScreenA wide picture (16:9, e.g. 1920 × 1080)
Computer or TV (wide)Fills the screen, no bars
Phone held sidewaysFills the screen, or thin bars at the sides
Phone held upright (tall)The whole picture across the middle, black above and below
You seeWhyFix
Black bars above and below on a phoneThe picture is wide and the phone is tall. The bars are added by the page; they are not in your file.Expected for a wide picture. Use a dark picture so the bars blend in, or put a black or dark edge around your artwork.
The picture looks blurredIt was uploaded small and stretched upUpload it at 1920 × 1080
The logo and loading animation are hard to seeThey sit on top of a busy or bright areaKeep the middle and top of the picture calm and dark

Shown near the top of the loading screen. Its height is set to a fifth of the screen height, and the width follows the picture's own shape, never wider than the screen.

You seeWhyFix
A white or coloured box around the logoThe PNG has a solid backgroundExport it with a transparent background
The logo is tiny on a phoneLarge empty margins inside the file are scaled tooCrop the file tight around the logo
Hidden while a loading video playsA loading video replaces the logo, the loading image and the loading backgroundUse either a video or pictures

Play button

Replaces Eagle 3D Streaming's round button in the middle of the Click to start screen. It is drawn at most a fifth of the screen width: about 80 pixels on a phone, up to about 380 on a large screen. With your own button the words Click to start are not added.

You seeWhyFix
A square box behind the buttonThe PNG has a solid backgroundExport it with a transparent background
Viewers do not know they have to press itA plain shape with no hint, and no words under itPut a clear play symbol or the word "Start" in the artwork
Squashed or stretchedThe picture is not squareMake it square (400 × 400)

Loading image

The small animation in the middle of the loading screen, inside the progress circle. It is drawn 65 pixels wide at most, so it should be simple and square.

You seeWhyFix
It does not moveIt was uploaded as a PNG or JPGUpload an animated GIF
Unreadable or blurredA wide or detailed animation shrunk to 65 pixelsA simple square animation, 130 × 130 or smaller
Slow to appearA large GIF fileKeep it small (under 500 KB)

Uploading once, reusing everywhere

Images go into an asset library on your account, not into a single configuration. Upload once and the same file is selectable from every configuration you have.

  1. Open the element you want to change, and press Add New

  2. Upload a file, or pick one already in the library

    Press Upload Image, browse or drag the file in and press Upload. You are taken back to the library with your new picture in it: select it and press Add Selection.

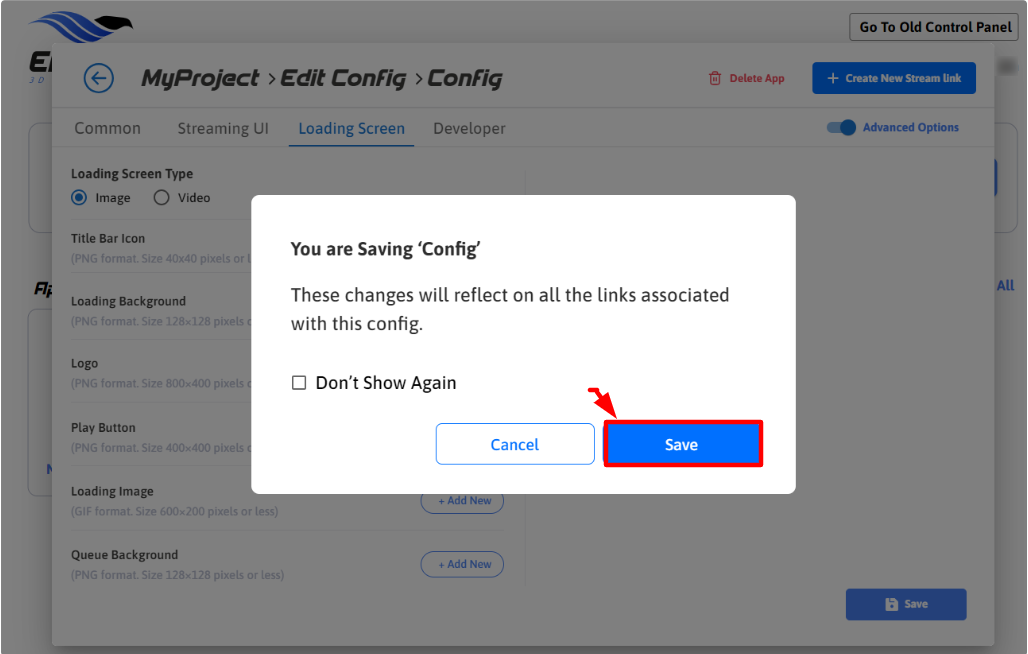

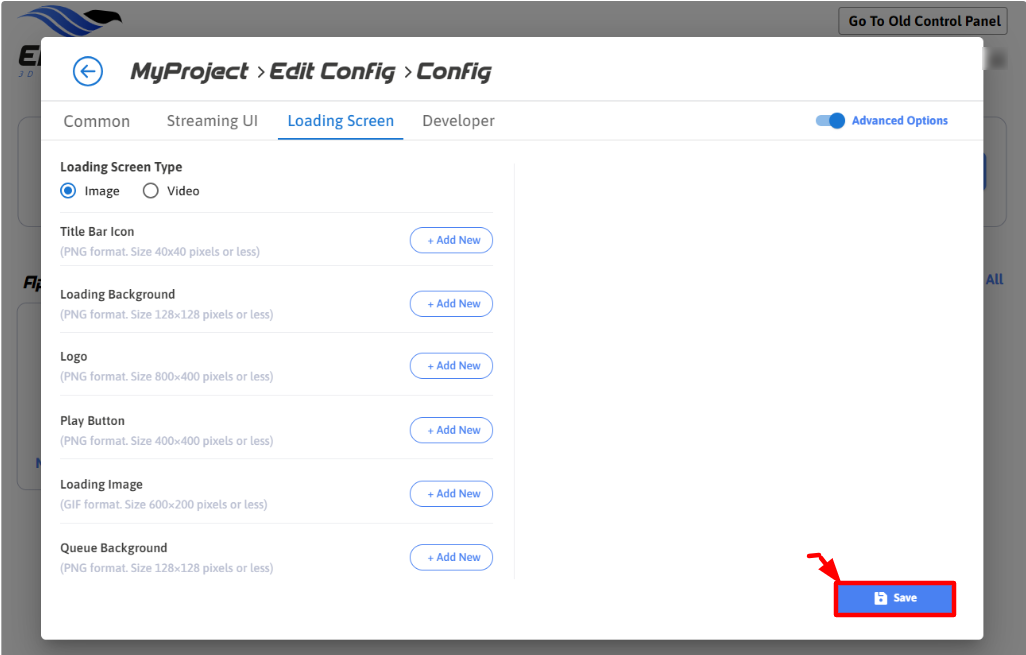

  3. Save

    Like every configuration change, this affects new sessions only. Anyone already streaming keeps what they started with.

A video instead

The loading screen can play a video rather than show a still image — worth it when the wait is long enough that something moving holds attention better than a logo.

Videos are added to a list the same way. With more than one, Shuffle Videos picks one at random per session, so a repeat visitor does not watch the same clip every time.
