Receive Data in Webpage from Unreal App

In this guide, we’ll show you how to receive data from an Unreal Engine (UE) application (sender) into your webpage (receiver) using the Eagle 3D Streaming SDK.

Live Streaming URL

You can test this workflow using the live streaming URL below:

https://e3ds.github.io/pixelstreaming-sdk/e3ds_streaming_FE.html

Demo Project GitHub Repository: https://github.com/e3ds/pixelstreaming-sdk

Follow the steps below:

Step 1. Add Callback Function in `scripts_demo.js`

Open your scripts_demo.js file and add this callback function:

JS

e3ds_controller.callbacks.onResponseFromUnreal = function(descriptor) {
    console.log("Message sent from Unreal:", descriptor);
};

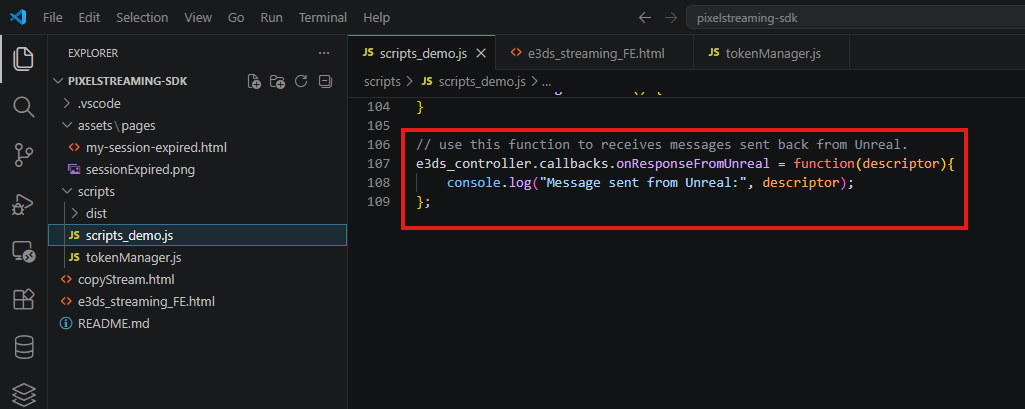

**Figure 1:** Add `onResponseFromUnreal` callback in `scripts_demo.js`

Explanation

Code	Meaning
`e3ds_controller.callbacks.onResponseFromUnreal`	This callback is triggered when the webpage receives data from the Unreal app.
`function(descriptor)`	`descriptor` contains the message or data sent from Unreal.
`console.log("UnrealResponse:", descriptor);`	Prints the received Unreal message in the browser console for testing/debugging.

For testing, we added console.log() to print the message sent from Unreal in the browser console.

You can later use this received message as per your requirements, for example:

Show it on the webpage
Trigger a frontend action
Update UI
Open a modal
Store the data
Process commands from Unreal

Step 2. Send Message from Unreal

Now send a message from the Unreal app.

In our demo app, we have an Open URL button inside the Unreal application.

Click the Open URL button in the Unreal app.

When the button is clicked, Unreal sends a message to the webpage.

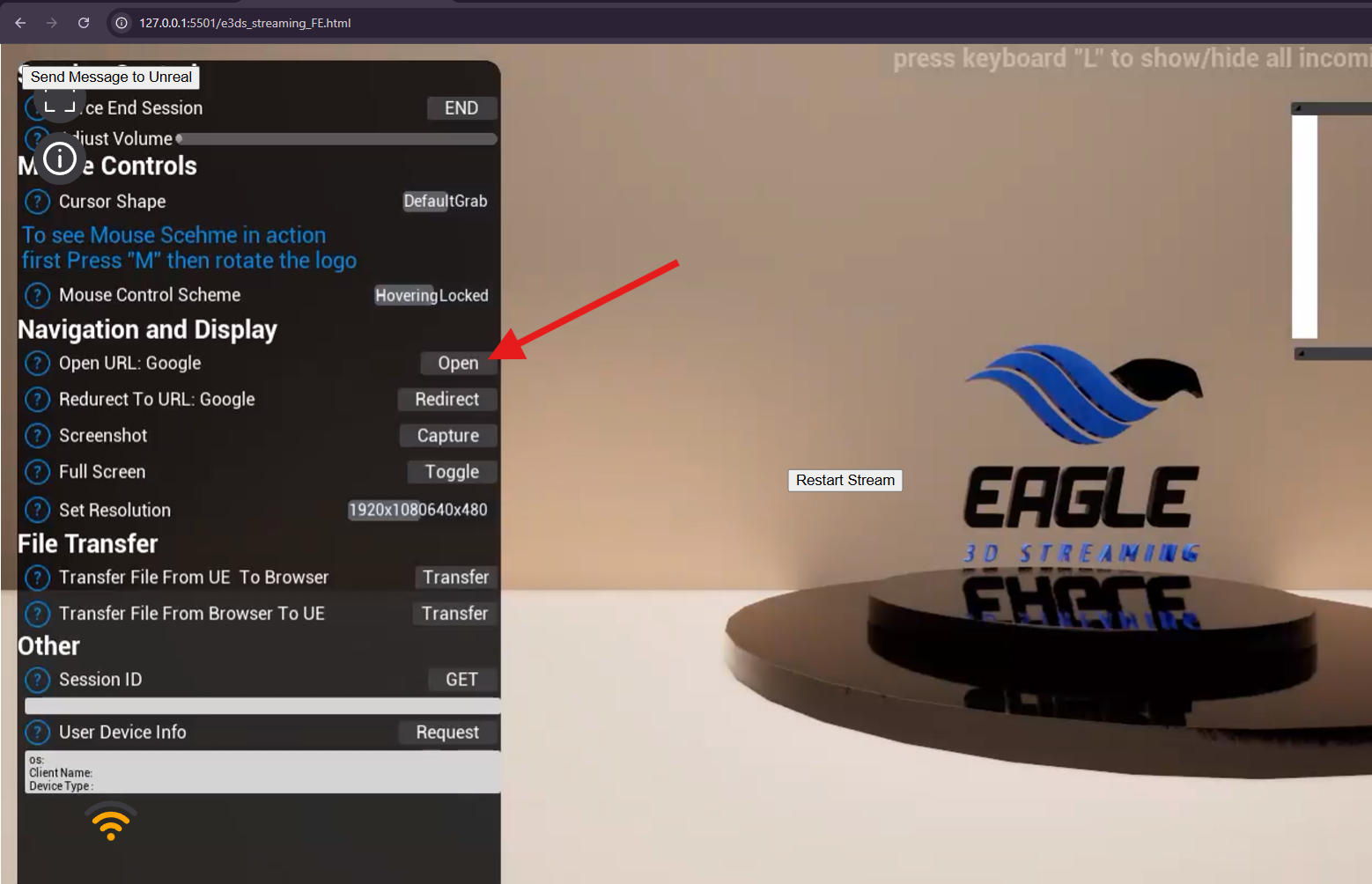

**Figure 2:** Click the button inside the Unreal app to send a message to the webpage

Step 3. Check Browser Console Log

Open the browser Developer Tools.

You can open Developer Tools by pressing:

CODE

F12

or:

CODE

Right click on webpage → Inspect → Console

Now check the Console tab.

If the message is received successfully from Unreal, you should see a log like this:

CODE

UnrealResponse: <message from Unreal>

This confirms that the webpage successfully received data from the Unreal application.

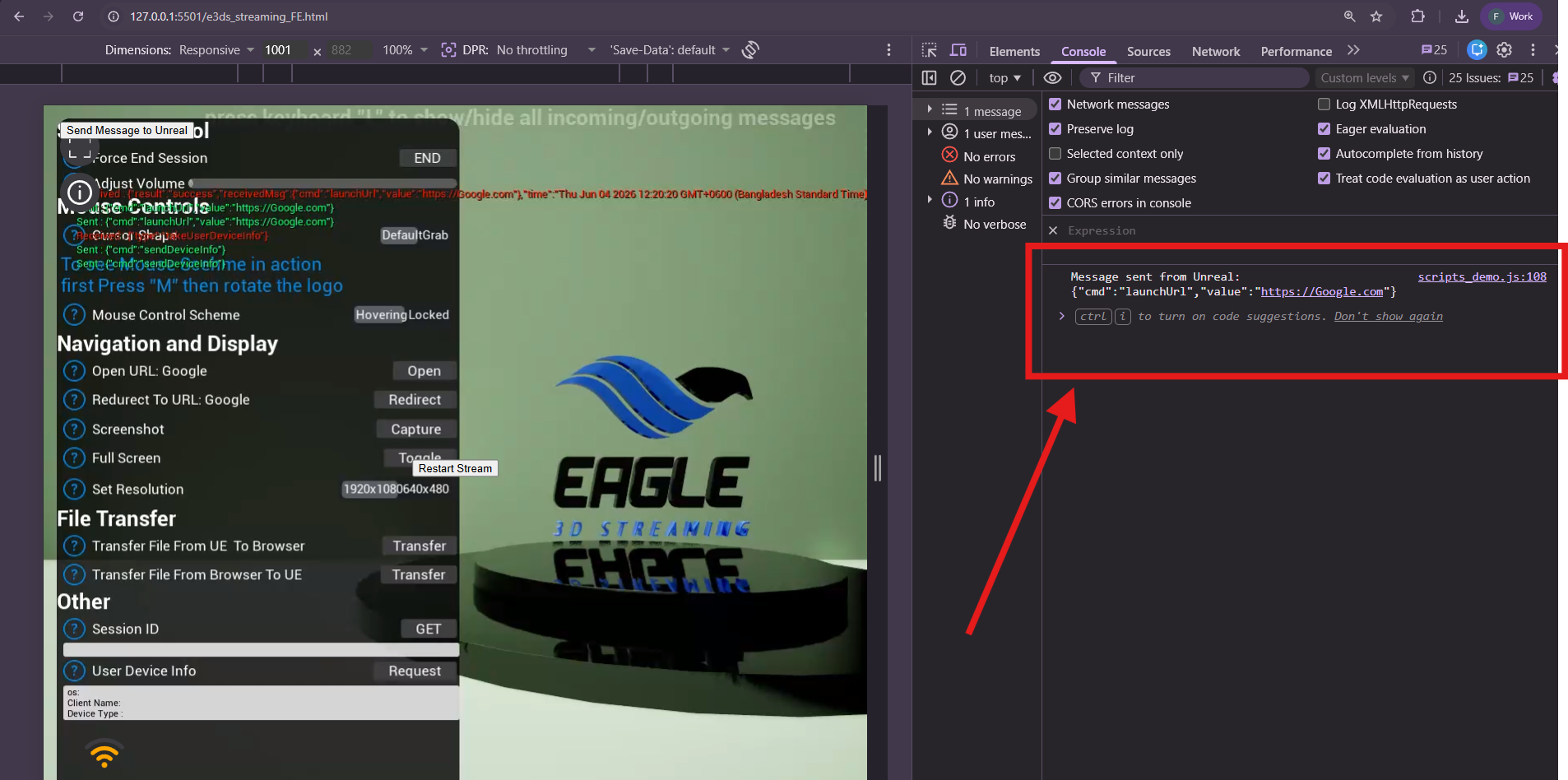

**Figure 3:** Browser console showing the message received from Unreal

Expected Result

After completing the steps:

Unreal sends a message.
The webpage receives the message.
The message prints in the browser console.

Example console output:

CODE

Message sent from Unreal: {"cmd":"openUrl","value":"https://eagle3dstreaming.com"}

Demo Video

You can watch the demo video below to see the final result:

https://youtu.be/imqx9bJ71j8

Troubleshooting

Issue	Possible Cause	Solution
No message appears in browser console	Callback function is not added or not loaded	Make sure `onResponseFromUnreal` is added in `scripts_demo.js`.
`e3ds_controller is not defined`	SDK is not loaded yet	Make sure the SDK script is loaded before using `e3ds_controller.callbacks`.
Unreal button clicked but no browser response	Unreal may not be sending the message correctly	Check the Unreal Blueprint/message-sending setup.
