Send Data from Webpage to Unreal App

In this guide, we will show how to send data from a webpage to an Unreal Engine application using the Eagle 3D Streaming SDK.

Live Streaming URL

You can test this workflow using the live streaming URL below:

https://e3ds.github.io/pixelstreaming-sdk/e3ds_streaming_FE.html

Demo Project GitHub Repository: https://github.com/e3ds/pixelstreaming-sdk

Follow the steps below:

Step 1. Add Function in `scripts_demo.js`

Open your scripts_demo.js file and add this code:

JS

function sendMessageToUnreal() {
    const descriptor = "This message is sent by frontend";

    console.log("Sending to Unreal:", descriptor);

    e3ds_controller.sendToUnreal(descriptor);
}

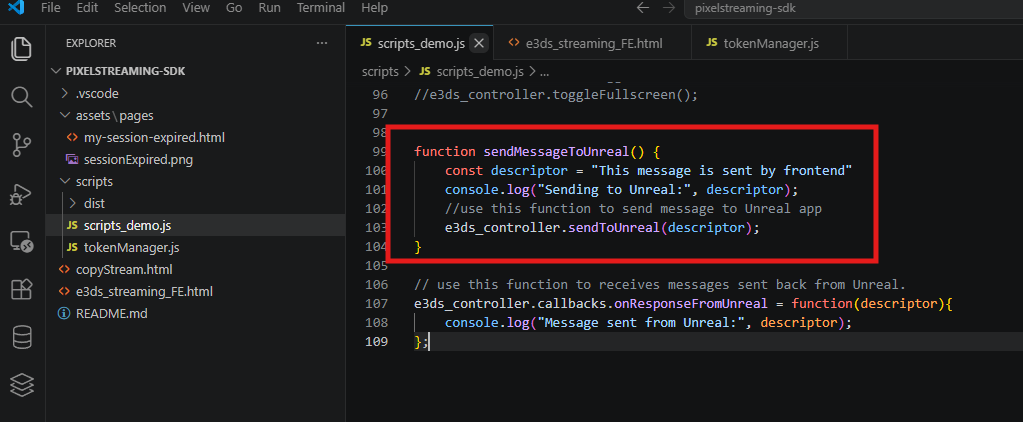

Figure 1. Add Function in `scripts_demo.js`

Explanation

Code	Meaning
`function sendMessageToUnreal()`	Creates a function that can be called from the HTML page.
`const descriptor = "This message is sent by frontend";`	Defines the message that will be sent to Unreal.
`console.log("Sending to Unreal:", descriptor);`	Prints the message in the browser console for debugging.
`e3ds_controller.sendToUnreal(descriptor);`	Sends the message to the Unreal app using the Eagle 3D Streaming SDK.

Step 2. Add Button in HTML Page

Open your HTML page and add this button:

HTML

<button onclick="sendMessageToUnreal()">Send Message</button>

Explanation

Code	Meaning
`<button>`	Creates a clickable button on the webpage.
`onclick="sendMessageToUnreal()"`	Calls the `sendMessageToUnreal()` function when the button is clicked.
`Send Message`	The text shown on the button.

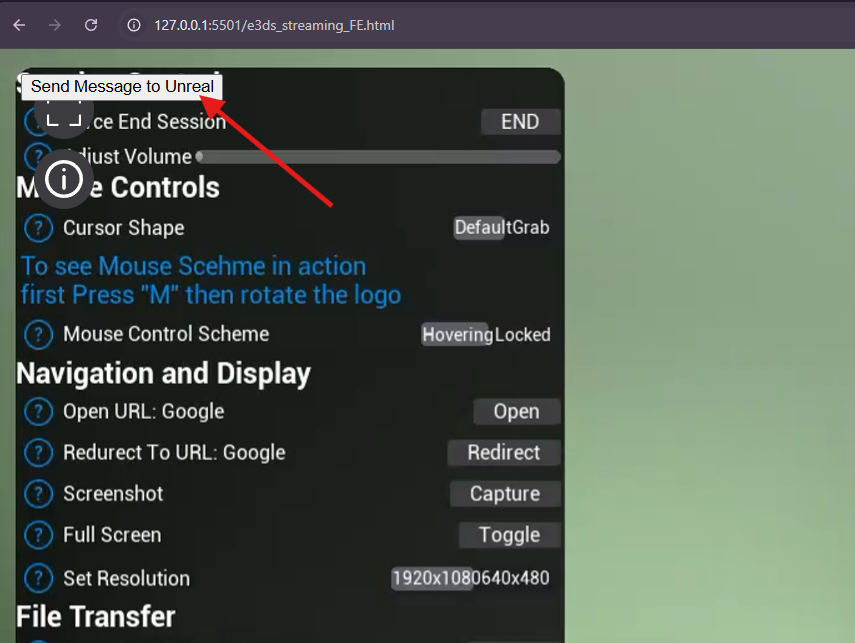

Figure 2. Add a Button to Send Message to Unreal

Step 3. Test the Message

After adding the function and button:

Run your SDK webpage.
Wait until the stream is connected.
Click the Send Message button.
Check whether the message appears inside the Unreal app.

In our demo app, we enabled on-screen messages inside Unreal. So whenever the button is clicked, the message is printed inside the app screen.

Example message shown inside Unreal:

CODE

This message is sent by frontend

You can also check the browser console. You should see:

CODE

Sending to Unreal: This message is sent by frontend

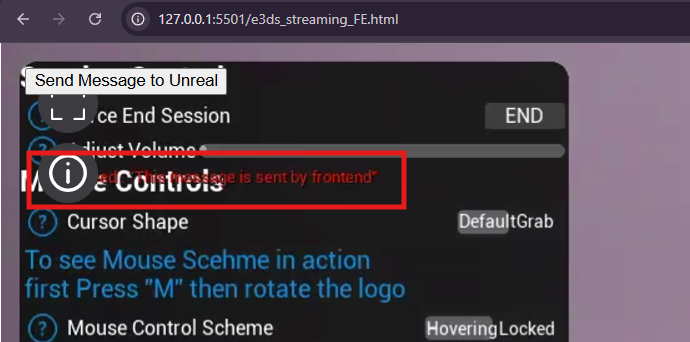

Figure 3. Message sent from the frontend and displayed inside the Unreal app

Important

Send the message only after the stream is fully connected.

You can confirm the stream connection with this callback:

JS

e3ds_controller.callbacks.onDataChannelOpen = function () {
    console.log("Stream Connected");
};

After the stream is connected, click the button and test the message.

Demo Video

You can watch the demo video below to see the final result:

https://youtu.be/EEwEfjzcOLs

Troubleshooting

Issue	Possible Cause	Solution
Button click does nothing	Function name mismatch	Make sure the button calls the same function name used in `scripts_demo.js`.
`sendMessageToUnreal is not defined`	Function is not available globally	Use the `window.sendMessageToUnreal = function () { ... }` version.
`e3ds_controller is not defined`	SDK is not loaded yet	Make sure SDK files are loaded before calling `e3ds_controller.sendToUnreal()`.
Message logs in browser but not in Unreal	Stream is not connected or Unreal receiver is missing	Wait until stream is connected and make sure the Unreal app can receive the message.
Unreal receives message but nothing shows on screen	On-screen message logic is not enabled in Unreal	Enable Print String, on-screen message, or custom UI display logic in Unreal.
